Car or SUV System

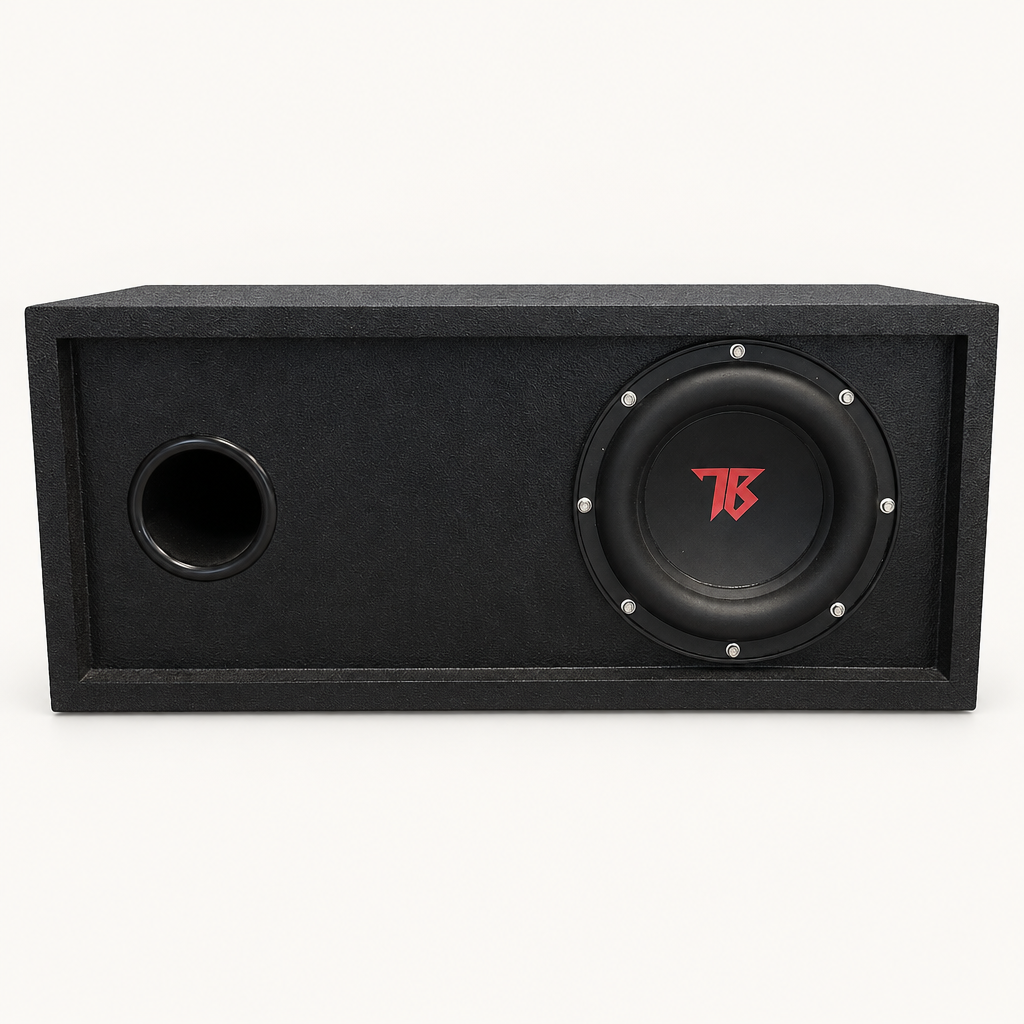

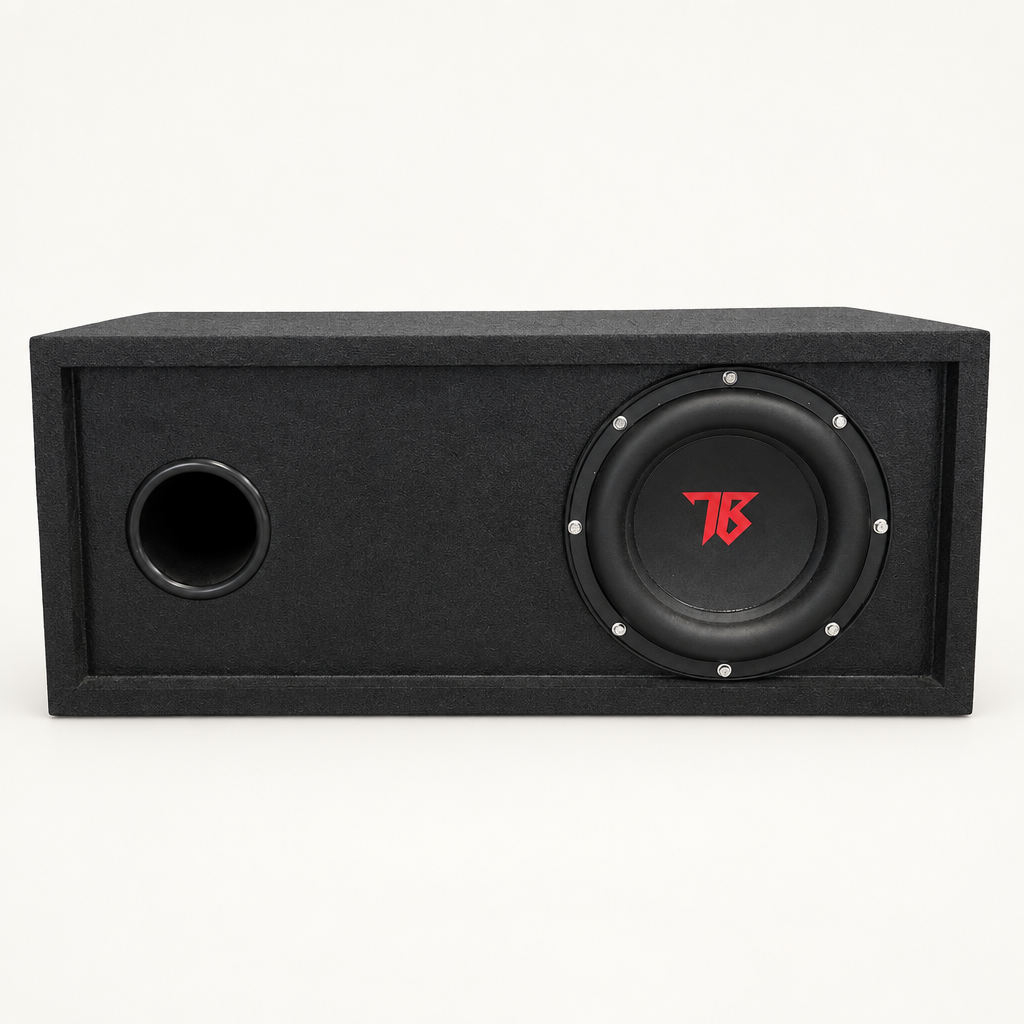

Plan a bass upgrade around the space you have with the TrueBass Solutions Car or SUV System. Featuring one TBS 842 DV 8" woofer and one round port, this system brings a single-woofer layout together in an enclosure measuring 24 × 10 × 14 inches.

Whether you are refreshing your daily driver's audio or building a new setup, compare the enclosure dimensions with your available vehicle space, then choose compatible amplification and wiring for a system planned around your listening needs.

Woofer:

• One TBS 842 DV 8" woofer

Voice-Coil Inside Diameter:

• 2 inches per woofer.

Driver Fs:

• Free-air resonance frequency (Fs): 42 Hz for the TBS 842DV driver. This is a driver parameter, separate from enclosure resonance or tuning.

Impedance:

• 4 / 4 Ω

Power Handling (RMS / Peak):

• 250 / 500 watts
• Use the RMS rating when planning compatible amplification; peak handling is not a continuous-power rating.

Weight:

• 40 lbs

Ports:

• One round port, 3 inches in diameter × 9 inches long.

Outside Enclosure Dimensions:

• 24 × 10 × 14 inches.
• Allow space for wiring and installation when checking fit.

Inputs & Wiring:

• Two pairs of heavy gold-plated binding posts positioned on the rear
• Listed wiring options: 2.0 ohms mono or 4.0 ohms stereo
• Confirm the appropriate configuration for your amplifier and match the final impedance to its supported load.

Decibel Output:

• The existing specification notes the potential to exceed 140 dB in many standard-cab pickup trucks. Actual output depends on the vehicle, amplification, installation and testing conditions; this is not a guaranteed result.

Enclosure Resonance:

• 38 Hz

Before You Order:

• Measure your available installation space and compare it with the full enclosure dimensions.
• Confirm amplifier compatibility with the power handling and intended wiring.
• Contact TrueBass Solutions with your vehicle details, available space and amplifier information if you need help selecting a system.
