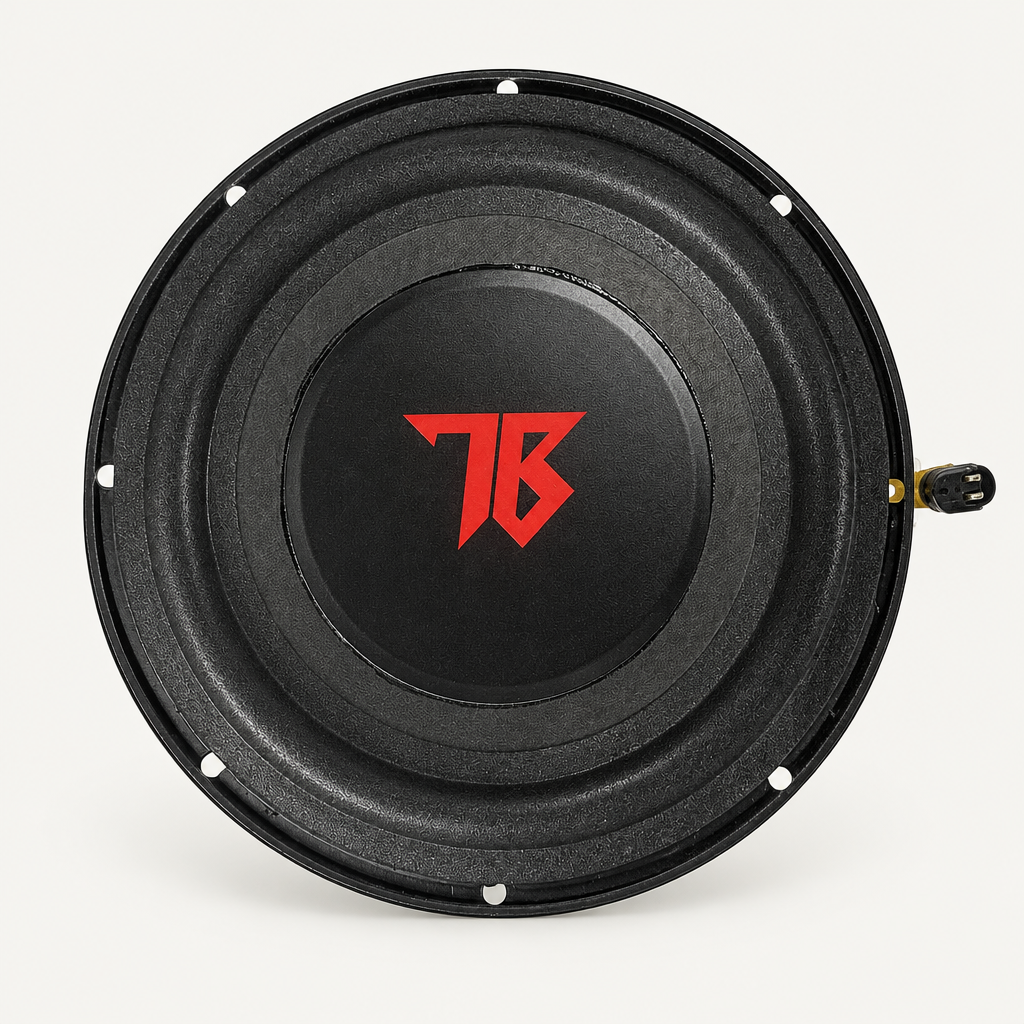

1042 Subwoofer

Plan a dedicated low-end upgrade with the TrueBass 1042 Subwoofer. This 10-inch driver is designed for trucks, SUVs, and large vehicle audio builds, with listed power handling of 300 watts RMS and 600 watts peak.

Whether you are replacing an existing woofer or starting a custom installation, picture your favorite tracks with a dedicated driver handling the bass. Match the enclosure, amplifier, and wiring to the driver, and check mounting measurements before ordering.

Driver & Application

• Model: TrueBass 1042.
• Driver size: 10 inches.
• Designed for vehicle audio applications.

Power Handling

• RMS power handling: 300 watts.
• Peak power handling: 600 watts.

Voice Coil, Magnet & Impedance

• Voice-coil inside diameter: 2 inches per woofer.
• Total driver weight: 8 lbs, including the magnet.
• Magnet weight: 80 oz per woofer (1 × 80 oz magnet). This component weight is included in the total driver weight, not added on top.
• Dual voice coils: 4 ohms per coil (4 / 4 ohms).

Sensitivity & Acoustic Parameters

• Sensitivity: 92 dB at 1 watt/1 meter.
• Free-air resonance frequency (Fs): 32 Hz. This is a driver parameter, separate from enclosure resonance or tuning.
• Qms: 4.18.
• Qes: 0.42.
• Qt: 0.38.
• Vas: 2.3 cubic feet.
• F3: 32 Hz.

Suggested Enclosure

• Suggested box size: 1.6 cu. ft. gross internal volume, before deducting the space occupied by the woofer and ports.
• Ports: two, each 3 inches in diameter × 11 inches long.
• Port-tuning frequency: 32 Hz.

Mounting & Construction

• Mounting cutout diameter: 9.125 inches.
• Mounting depth: 4.5 inches.
• Listed voice-coil material: high-temperature copper.
• Listed cone material: treated paper composite.
• Listed surround material: rubber.

Before You Order

• Match the final wiring impedance to your amplifier's supported load.
• Vas is an acoustic parameter, not a recommended enclosure volume.
• Confirm the acoustic parameters and enclosure or test basis for the listed F3 before comparing drivers or designing an enclosure.
• Professional installation is recommended. Contact TrueBass Solutions with your vehicle details, available space, and amplifier information for help planning your setup.
