Dual 10" Large Vehicle System - 2-TBS 1043 DV Ultra

Dual 10" Large Vehicle System - 2-TBS 1043 DV Ultra

$999.00

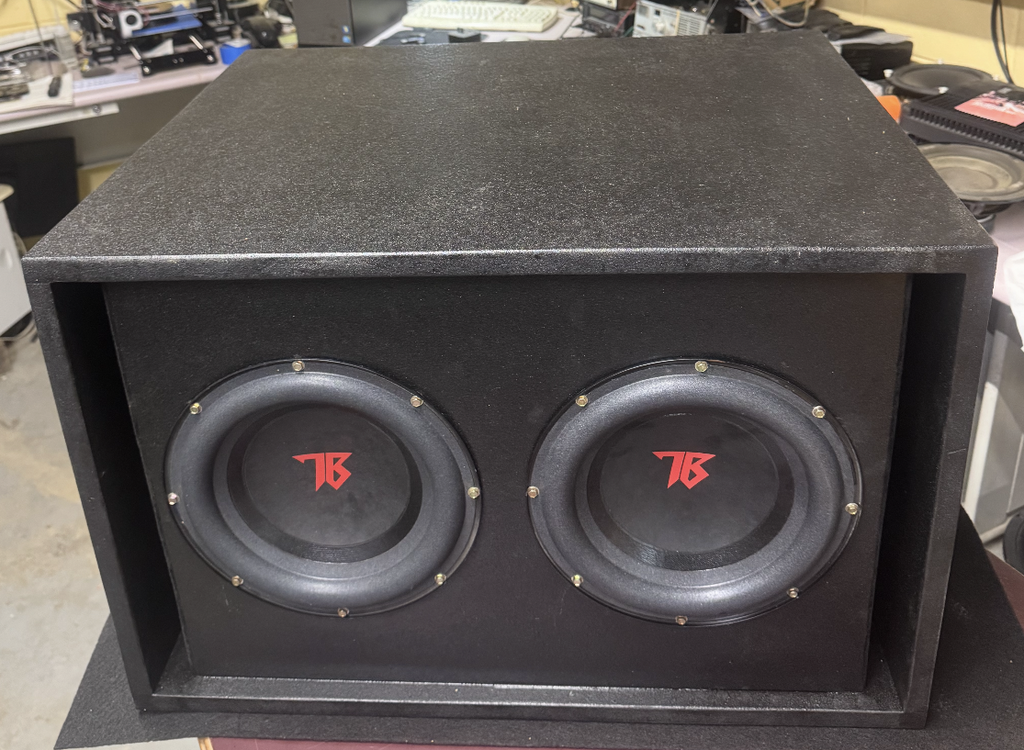

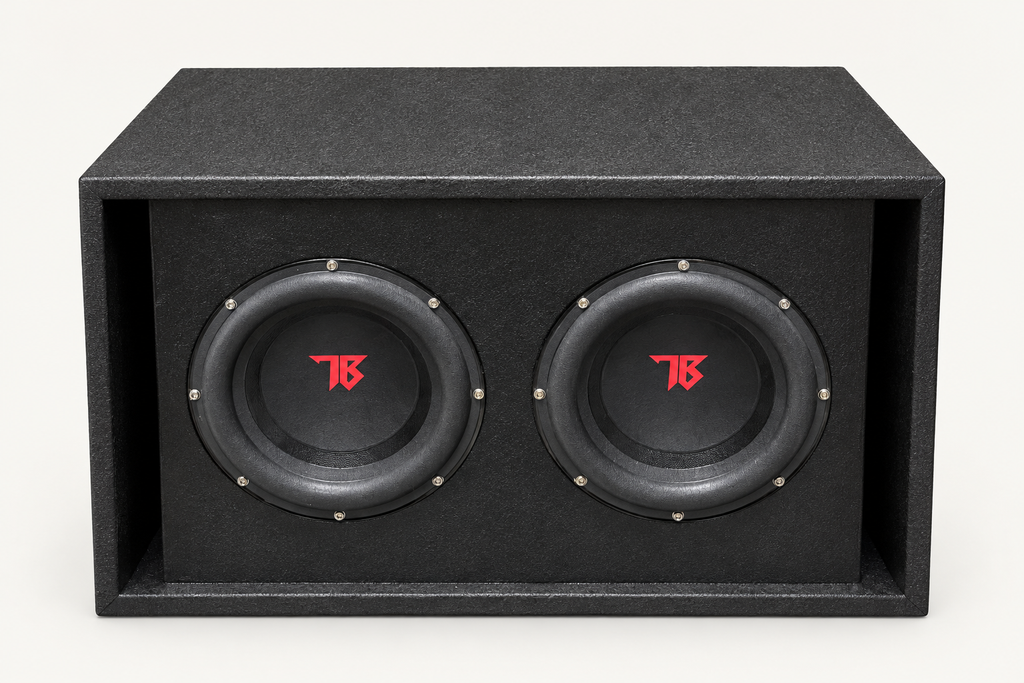

Build your vehicle's bass setup around two TBS 1043 DV Ultra 10" woofers with the TrueBass Solutions Dual 10" Large Vehicle System. This configuration brings both woofers together in an enclosure measuring 25" wide × 15.5" high × 20.5" deep, giving you a clearly defined footprint for planning your installation.

Picture your next drive with a dedicated dual-woofer setup handling the low end of your music. Whether you are starting a new build or reworking an existing system, begin with fit, amplifier matching and wiring. Two pairs of rear-mounted binding posts, configured to 2.0 ohms each, provide wiring access, while the specifications below help you plan the supporting equipment and mounting space.

Woofers:

  • Two TBS 1043 DV Ultra 10" woofers

Voice-Coil Inside Diameter:

  • 3 inches per woofer.

Woofer & Magnet Weight:

  • Total woofer weight: 20 lbs per woofer, including its magnet.
  • Magnet weight: 180 oz per woofer (1 × 180 oz magnet per woofer). Both woofers and their magnets are included in the system weight, not added on top.

Driver Specifications (per woofer):

  • Sensitivity: 93 dB at 1 watt/1 meter.
  • Free-air resonance (Fs): 36 Hz.
  • Qms: 4.22.
  • Qes: 0.43.
  • Qt: 0.39.
  • Vas: 2.2 cu. ft.

Box Impedance:

  • 2 / 2 ohms for the complete system.

Power Handling (RMS / Peak):

  • 1,200 watts RMS / 2,800 watts peak for the complete two-woofer system, not per woofer.

Weight:

  • 95 lbs

Dimensions:

  • 25" wide × 15.5" high × 20.5" deep
  • Allow clearance for rear wiring and secure mounting when checking fit.

Internal Enclosure Volume:

  • 3 cu. ft. gross internal volume for the complete enclosure, before woofer and port deductions.

Ports:

  • Two slot ports.

Inputs & Wiring:

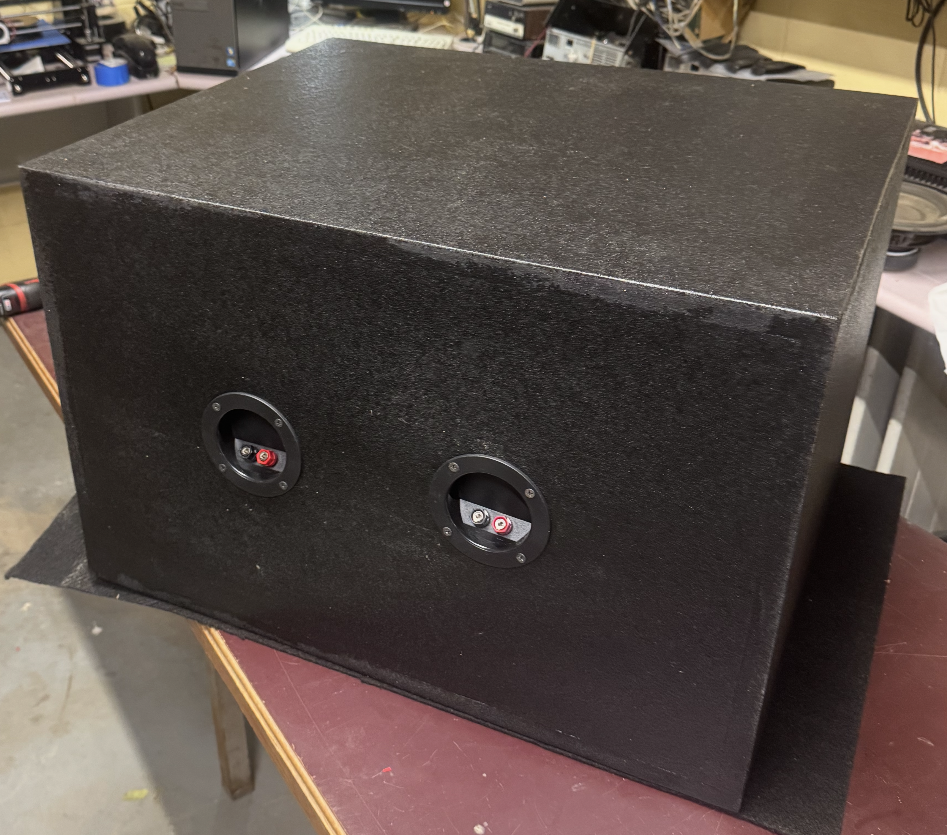

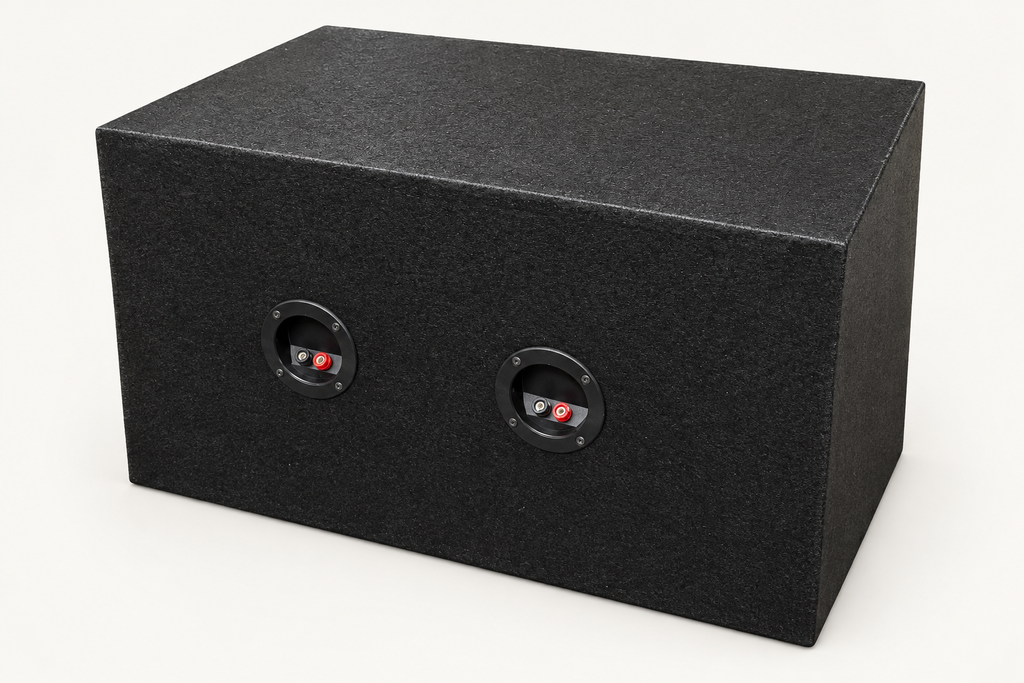

  • Two pairs of heavy gold-plated binding posts positioned on the rear, configured to 2.0 ohms each.
  • Match the final wiring impedance to your amplifier's supported load.

Decibel Output:

  • The existing specification notes the potential to exceed 160 dB in many vehicles with TBS 1043 DV Ultra woofers. Actual output depends on the vehicle, amplification, installation and testing conditions; this is not a guaranteed result.

Enclosure Resonance:

  • 34 Hz

System F3:

  • 36 Hz, separate from driver Fs and enclosure resonance.

Before You Order:

  • Compare the full enclosure dimensions with your vehicle's available installation space.
  • Plan suitable handling and secure mounting for the 95 lb system.
  • Confirm power handling and final wiring requirements before choosing an amplifier.
  • Contact TrueBass Solutions with your vehicle details, available space and amplifier information for help planning your setup.
