Dual 10" Large Vehicle System - 2-TBS 1042 DV

Build your vehicle's bass setup around the TrueBass Solutions Dual 10" Large Vehicle System, featuring two TBS 1042 DV woofers in one enclosure. Measuring 28" wide × 15" high × 20.5" deep, this system gives you a clearly defined footprint for planning placement and checking fit.

Whether you are putting together a new audio build or replacing an existing subwoofer setup, start with the space you have and the amplification you intend to use. This dual-10-inch configuration brings two woofers together, with four pairs of rear-mounted binding posts for wiring access. Use the specifications below to plan an installation around your vehicle and listening needs.

Woofers:

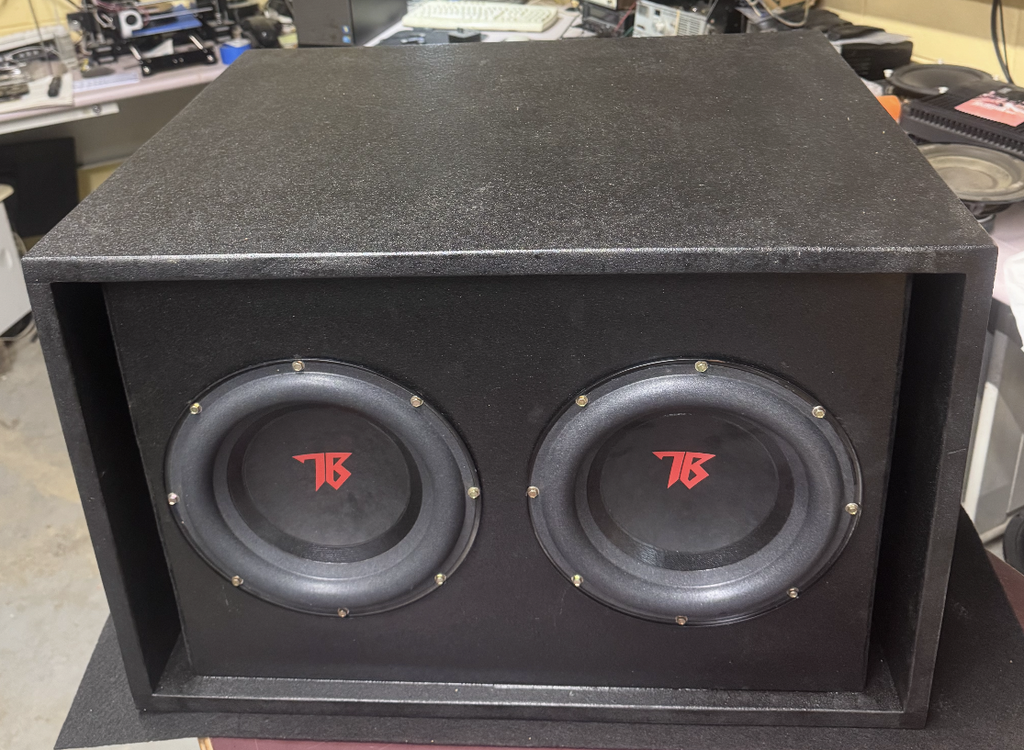

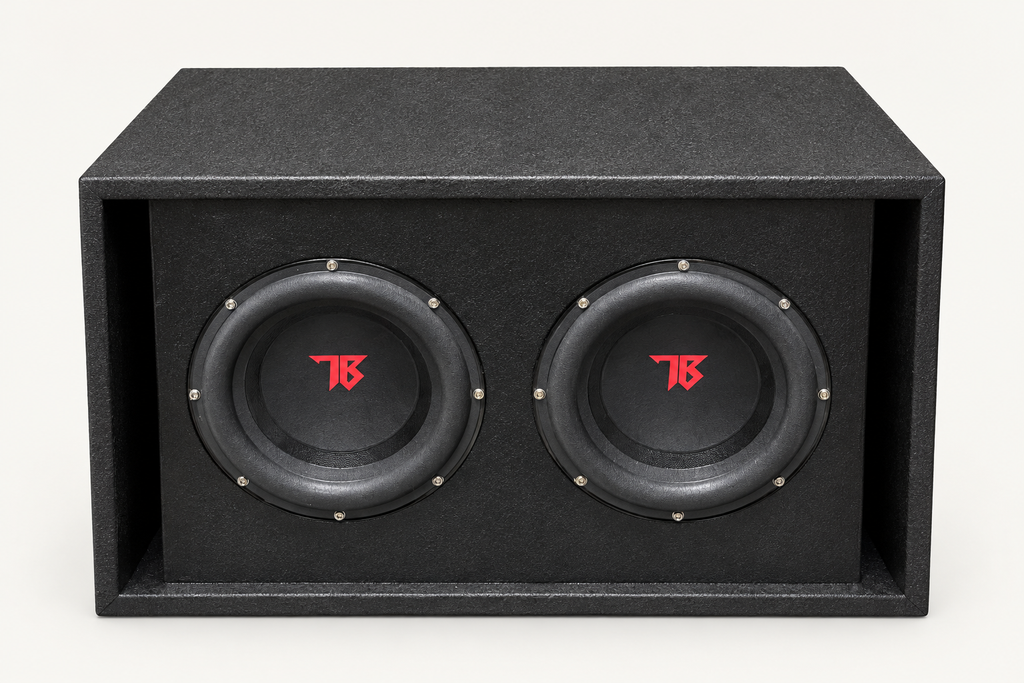

• Two TBS 1042 DV 10" woofers

Voice Coil:

• Voice-coil inside diameter: 2 inches per woofer.

Woofer & Magnet Weight:

• Total woofer weight: 8 lbs per woofer, including its magnet.
• Magnet weight: 80 oz per woofer (1 × 80 oz magnet per woofer). Both woofers and their magnets are included in the total finished product weight below, not added on top.

Impedance:

• 4 / 4 Ω

Power Handling (RMS / Peak):

• 600 watts RMS / 1,200 watts peak for the complete two-woofer system, not per woofer.

Total Finished Product Weight:

• 72 lbs, including the enclosure, woofers, magnets, and hardware.

Dimensions:

• 28" wide × 15" high × 20.5" deep
• Allow clearance for rear wiring and secure mounting when checking fit.

Ports:

• Two slotted ports.

Internal Enclosure Volume:

• 3.93 cu. ft. gross internal volume for the complete enclosure, before woofer and port deductions.

Inputs & Wiring:

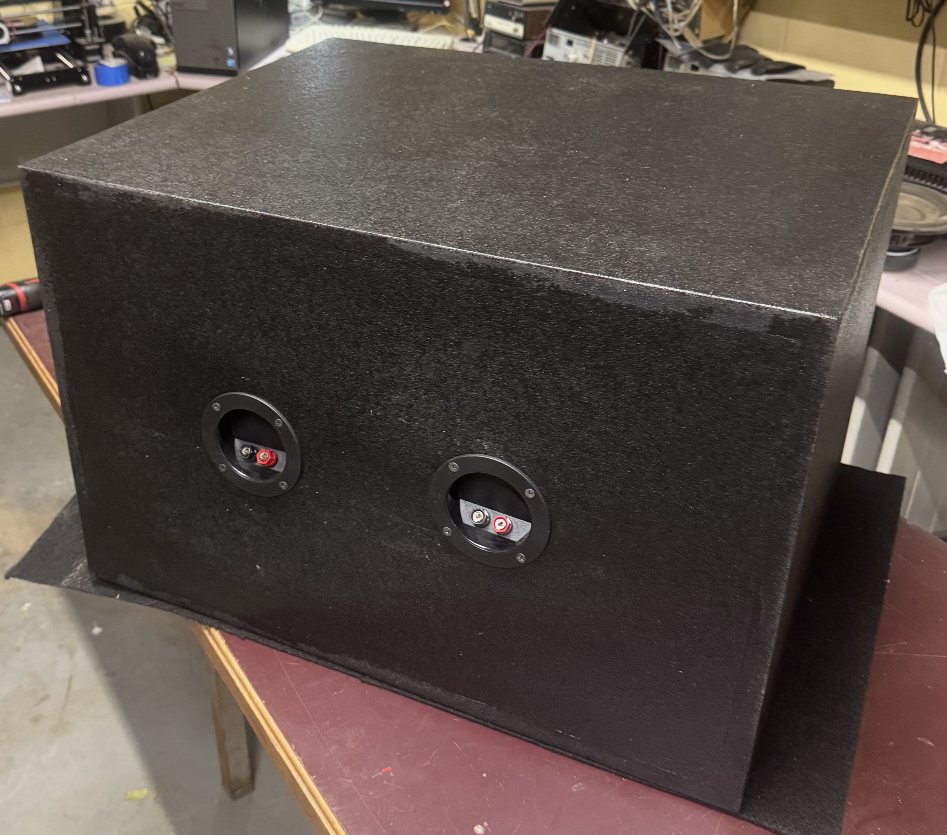

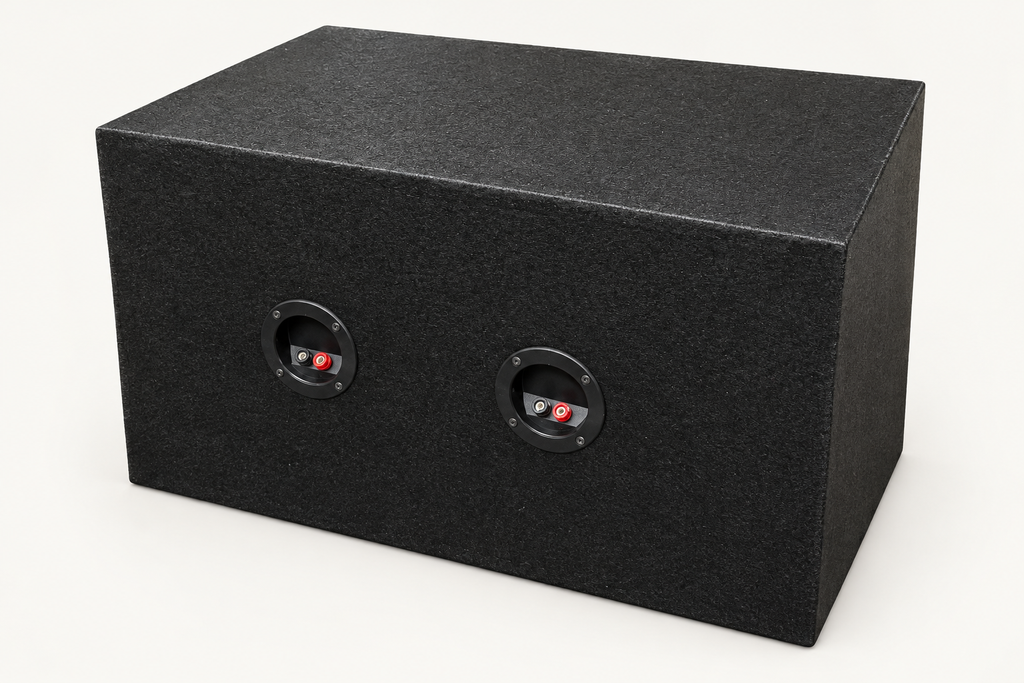

• Four pairs of heavy gold-plated binding posts positioned on the rear
• The existing specification lists configurations from 0.5 ohm mono up to four channels at 4.0 ohms each. Confirm the appropriate configuration for these woofers before installation.
• Match the final wiring impedance to your amplifier's supported load.

Enclosure Resonance:

• 34 Hz

Before You Order:

• Measure your available installation space and compare it with the full enclosure dimensions.
• Confirm power handling and final wiring requirements before choosing an amplifier.
• Contact TrueBass Solutions with your vehicle details, available space and amplifier information if you need help planning your setup.
